K Thermocouple Amplifier

 For various projects, my friends or I have needed to amplify a standard K type thermocouple to the 10mV/C ideally suited for computer and microcontroller based analog-to-digital converts.  This amplification is critical, because the thermocouple by itself only puts out 41 μV/C, which is TINY.  Additionally, thermocouples operate by measuring the temperature difference between two points, so you need to know the temperature on the "cold" end of the thermocouple as well.  Traditionally, this was done by submerging the cold end in a bucket of ice water, but that's a lot of work and becomes messy, so the preferred method is to use some sort of electronic compensator such as Linear's LT1025.  I have previously built the reference application from the LT1025 datasheet, but now that I've finally taught myself how to use Eagle, I decided reimplementing it on a printed circuit board might be useful in the future.

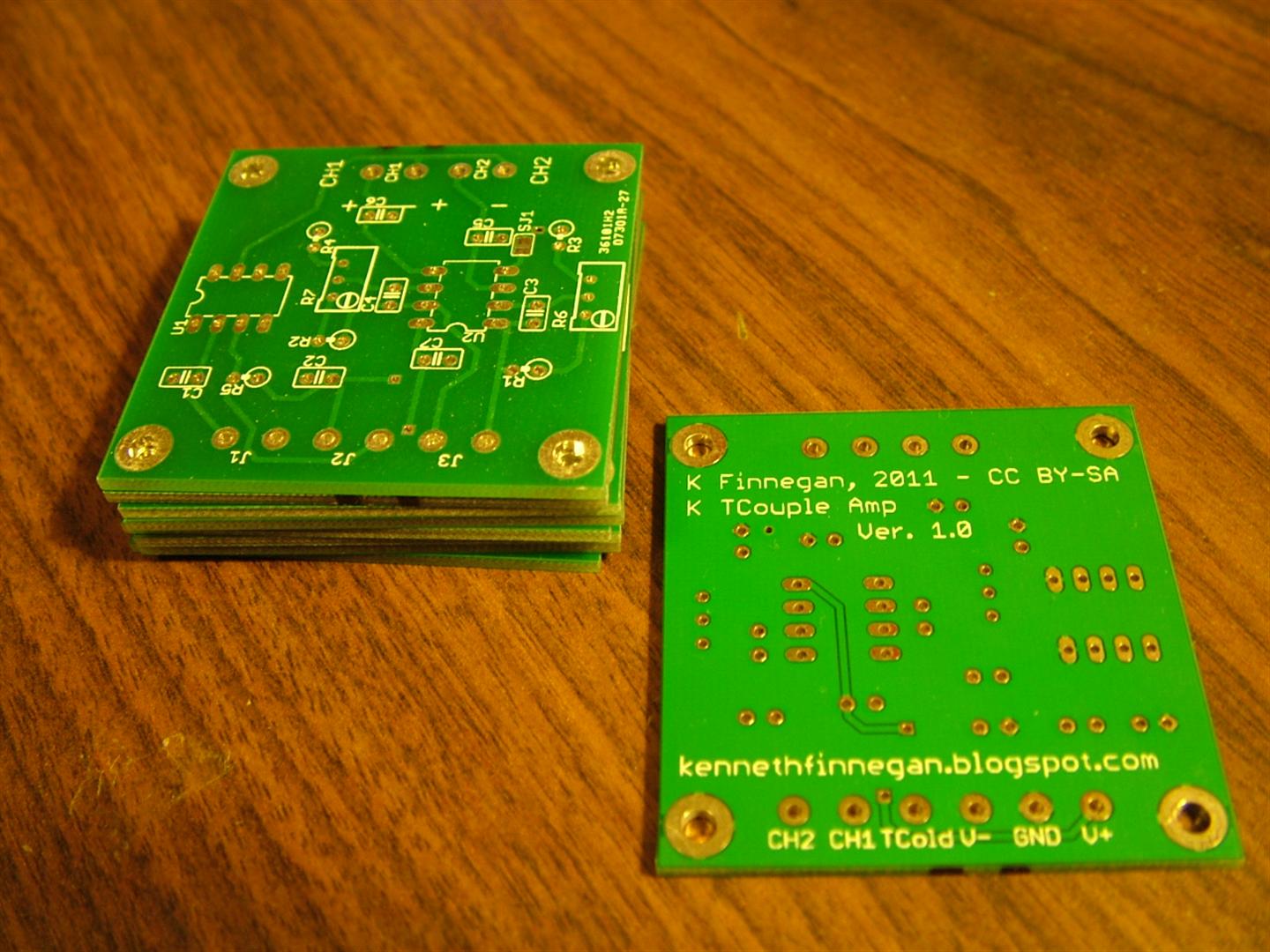

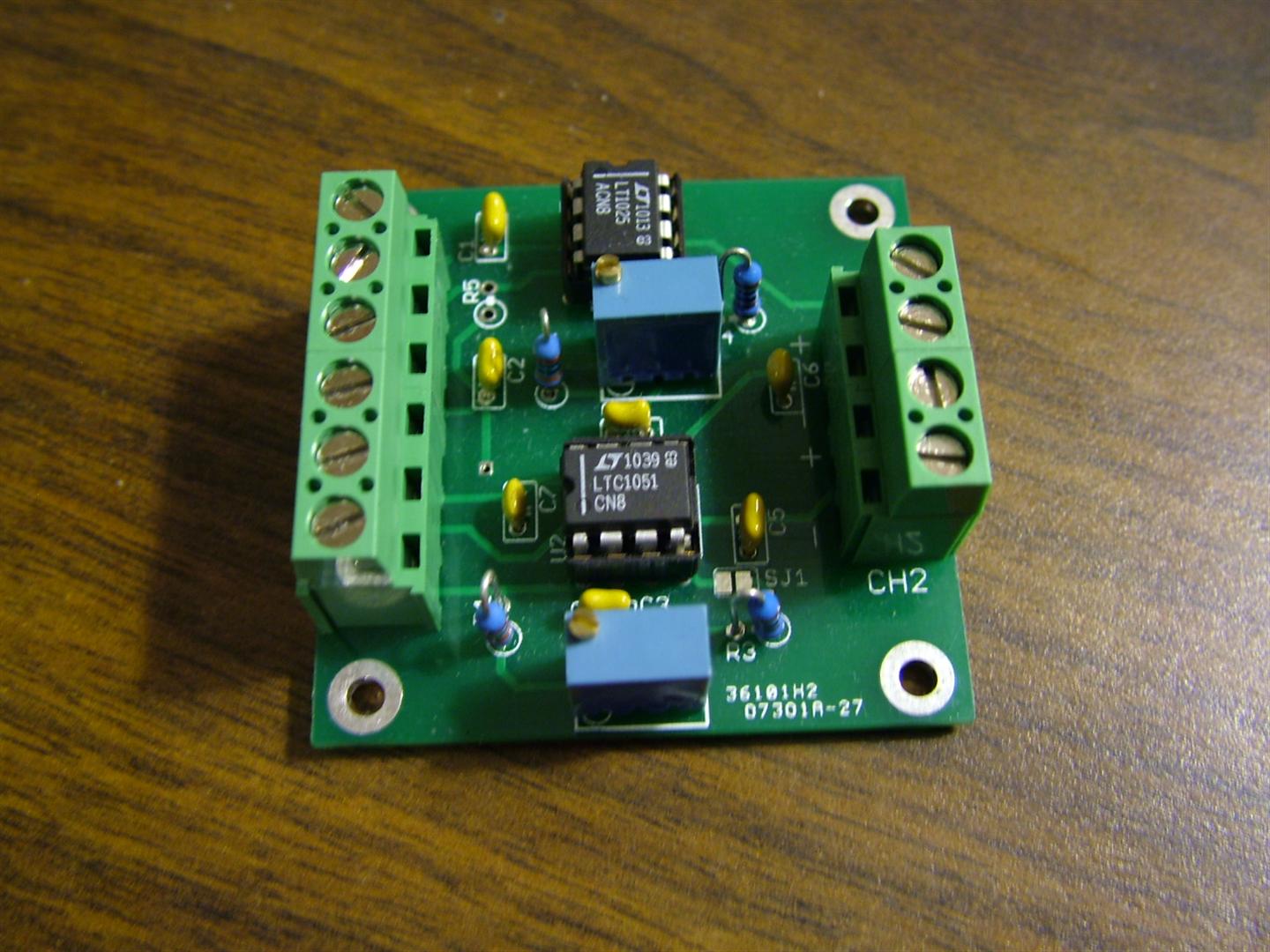

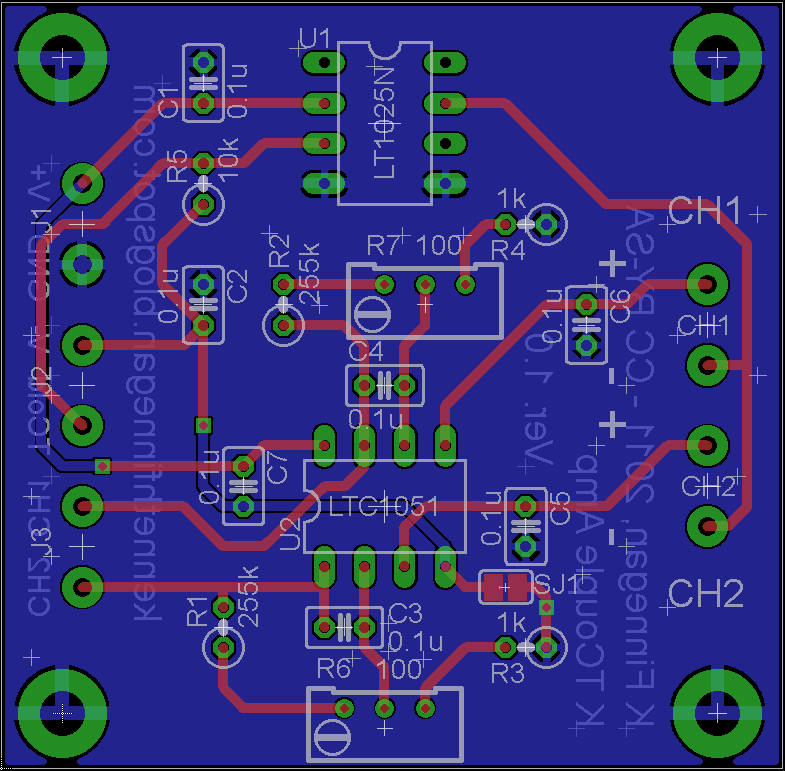

This board is designed using entirely through-hole components, meaning it is very easy to solder together your own copy, to amplify two type K thermocouples to 10mV/C to be fed into any sort of ADC
  • The left connector is six screws which connect to your power supply and analog-to-digital converter.  From top to bottom these are:
    • V+: Something like 5V.  As long as the power supply provides a clean voltage larger than the output you need, the exact numbers don't explicitly matter.  The maximum voltage between V+ and V- is a function of the dual op-amp you use.
    • GND
    • V-: This can be shorted to ground through SJ1 if you don't need to measure temperatures below 10C, otherwise apply something like -5V.
    • Tcold: This is a 10mV/C signal of the cold junction reference on the circuit board.  Useful if you also want to measure the ambient temperature.  If you expect the ambient temperature to be below 0C, you will need to install a 10k resistor in R5, which is otherwise unneeded.
    • CH1: 10mV/C signal of the first thermocouple to be fed into a volt meter or ADC.
    • CH2: 10mV/C signal of the second thermocouple, also to be somehow measured.
  • The right connector is for the two K type thermocouples.  The polarity is important!  Make sure you get the positive wires in the positive terminals, which are marked in the silk screen.  I expect the thermocouples to be terminated with bare wire, so if they come ending in HPC connectors or otherwise, you just need to get a screw driver and disassemble those.
The Bill of Materials can be very easily sourced from any major online distributor. Digikey is my personal favorite:
  • 7x 0.1μF capacitors (in 0.1" packages) (Digikey) C1-C7
  • 5x 2 position, 0.2" spaced wire-to-board terminal blocks (or any other way to get four and six positions) (Digikey) J1, J2, J3, CH1, CH2
  • 2x 255k 1% resistor (Digikey) R1, R2
  • 2x 1k 1% resistor (Digikey) R3, R4
  • 2x 100 ohm multiturn trimpot (Digikey) R6, R7
  • 2x 8DIP IC socket (Digikey)
  • 1x LT1025 DIP (Digikey) U1
  • 1x LTC1051 or any other dual low-offset op-amp. (Digikey) U2
  • Optionally 1x 10k resistor - R5



I used ITead Studio's prototype PCB service, which is a very interesting service.  $14 out the door got me 10 copies of my sub-5cm x5cm board, and two random other boards of other person's design.  They're decent boards...  There is definitely some problems with drilling accuracy, but it doesn't look like any of the holes are too problematically off-center.  If you're planning on using this service for a board design, I suggest pushing all your masks out a few more mil than you really need for through-hole.

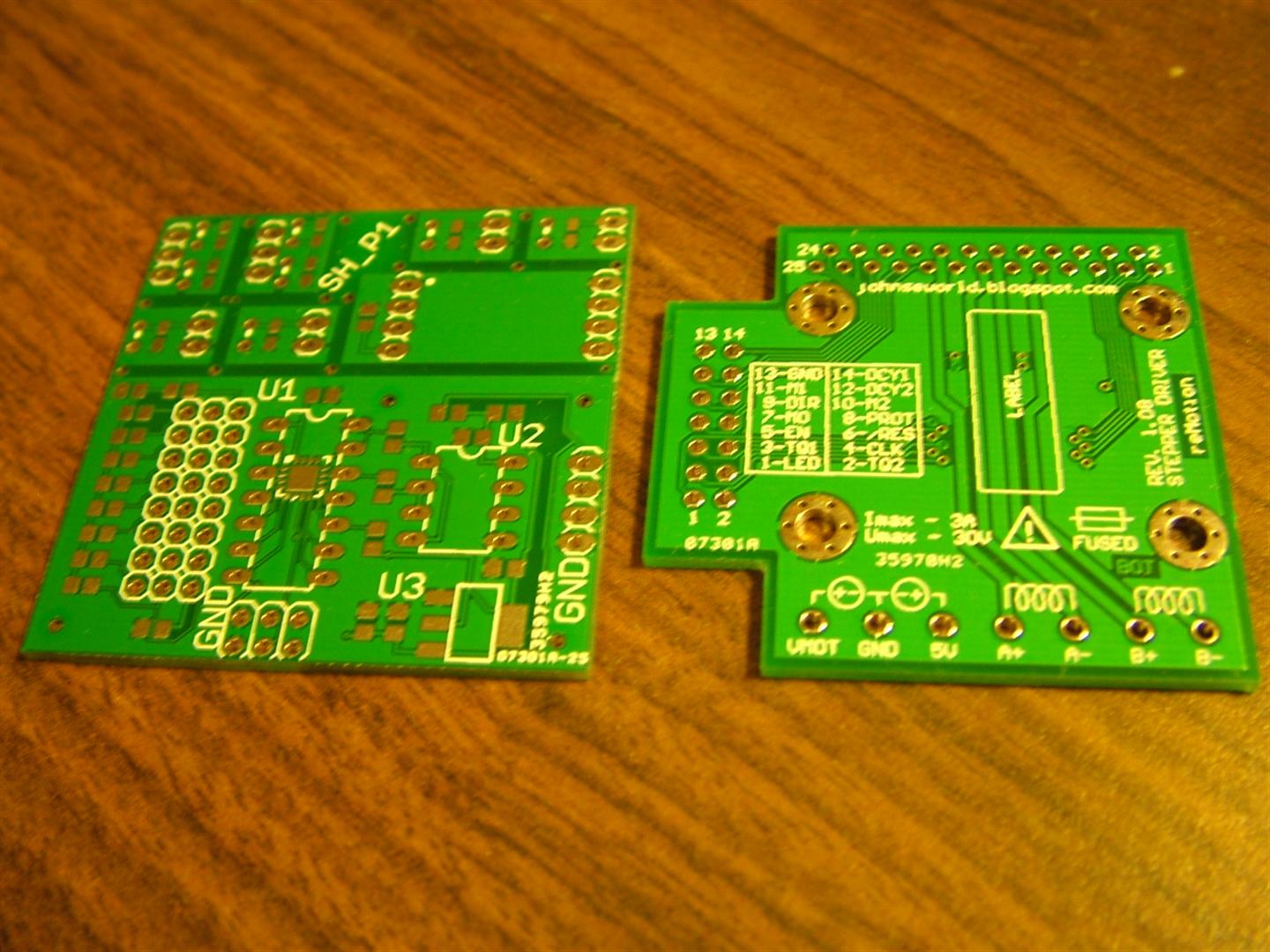

Part of the deal is that for 10 cents, ITead will make two more copies of your board, and swap them with other orders, which is very fun.  I managed to track down where one of the two random swapped boards came from; it's a stepper motor driver for a CNC mill.  The other board is a little baffling; it seems to be some sort of surface mount breakout / some sort of LED bar / random stuff.  Pretty baffling...

Unfortunately, I don't currently have access to my electronics work bench, so I can't assemble one of these boards yet to see if it actually works.I'm certainly not going to need ten copies of it, so if you want to be adventurous and try testing it for me, I'll mail you one of the boards to play with.

PCBs in stock: 5

If you would like to make any changes, or use this design in a larger project, or just have boards fabricated yourself, the entire design is licensed CC BY-SA, noting that the original schematic is heavily based on Linear's datasheet application note.  Download the Eagle/Gerber files here.
