Reprogramming the eZ430-Chronos RF Dongle

The eZ430-Chronos is a development kit released by TI last year that consists of a watch, a programmer, and an RF dongle, allowing the watch to wirelessly communicate with a computer over an ISM band of your model choice.  I bought one when they were first released, and started to do some interesting things with it.  Unfortunately, it was somehow misplaced over the summer, and that was the end of my experiments with it.

Of course, I didn't lose the USB dongles that come with the kit, so I still had those, and no watch to use them with.  The programmer is probably useful as a standard eZ430 FET, but the real value is most likely in the RF dongle.  It's a CC1111-based radio, meaning that it can quite easily be built into any kind of ISM to USB adapter, with the right firmware.  The first trick is, of course, being able to reprogram it.

The first application that comes to mind is talking to IM-MEs, which use the very similar CC1110 SoC radio...

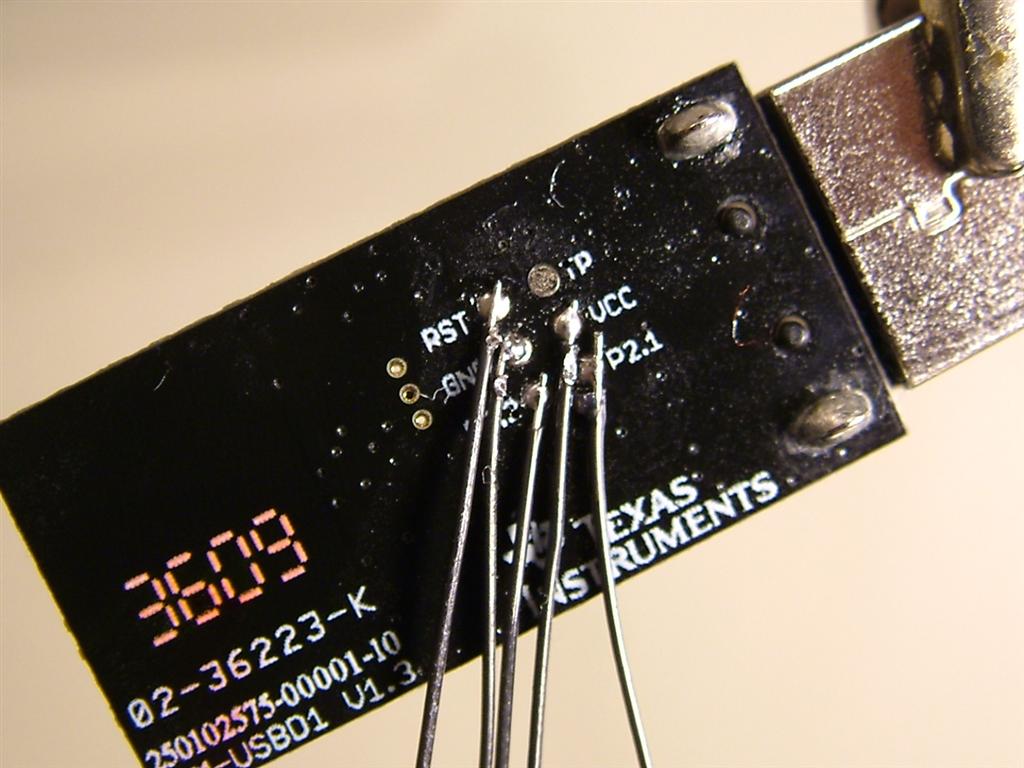

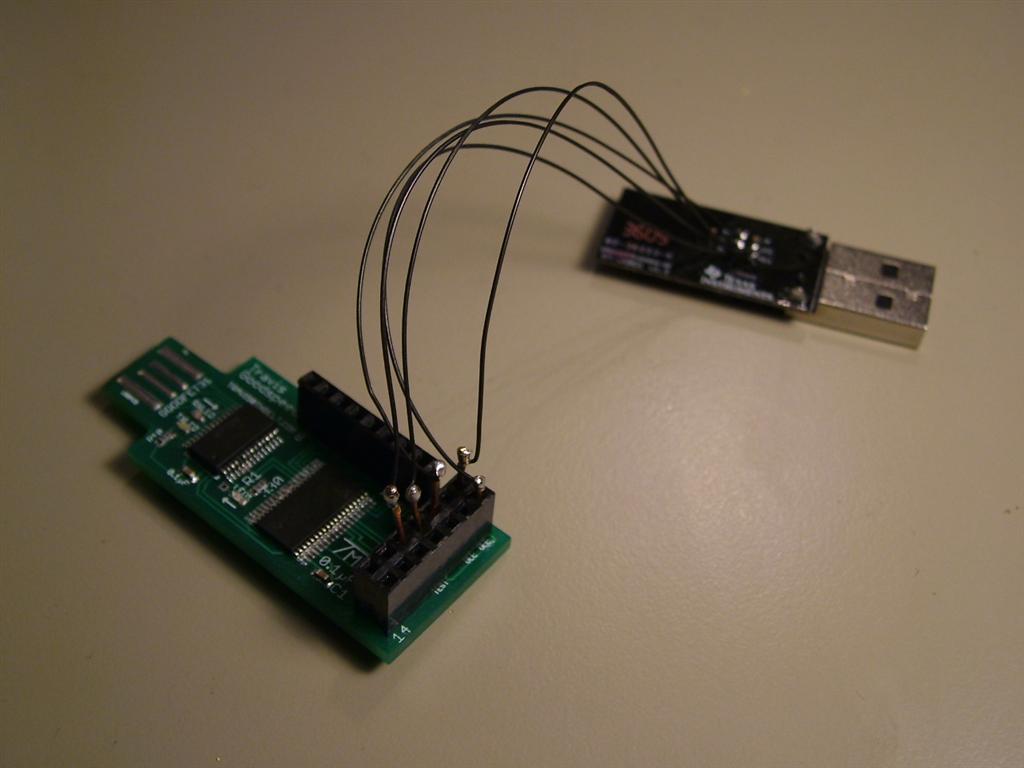

Conveniently enough, the RF dongle exposes all of the programming points on a 2mm 2x3 grid on the bottom of the board.  Solder tacking some 32 gauge wire to the required pads allows them to be plugged into any CC programmer, one of which is the GoodFET, which I happen to be selling assembled boards for.  I wrapped the other end of the 32 gauge wire around pieces of 20 gauge wire and soldered them there to allow them to plug into the female header on my GoodFET.
 The required wiring is:
RF Dongle (Source pg 59)
NamePin
Name
RST12
GND34Vcc
DC56DD

GoodFET
NamePin
Name
DD12Vcc

34Vcc
RST56
DC78
GND910

1112

1314

Reprogramming is then just a matter of using the GoodFET client to back up the old program, erase, and flash whatever hex file you want on it.

$ goodfet.cc status
$ goodfet.cc dumpcode rfdongle.backup.hex
$ goodfet.cc erase
$ goodfet.cc flash newprogram.hex

If you forget to backup the RF dongle code for the watch, and don't want to bother recompiling it, here is the original hex file, which doesn't support the new RF BSL feature, but will get you the standard communications system.

2 comments:

  1. Hey, Kenneth.
    Have you spent any time getting the dongle to work with the IM-ME? I was thinking about something similar where I would use the IM-ME's in a scavenger hunt with my kids and send them clues from the computer with the dongle.
    -jhs

    ReplyDelete
  2. This is in the works. I will certainly be posting any documented progress on this blog when it's made.
